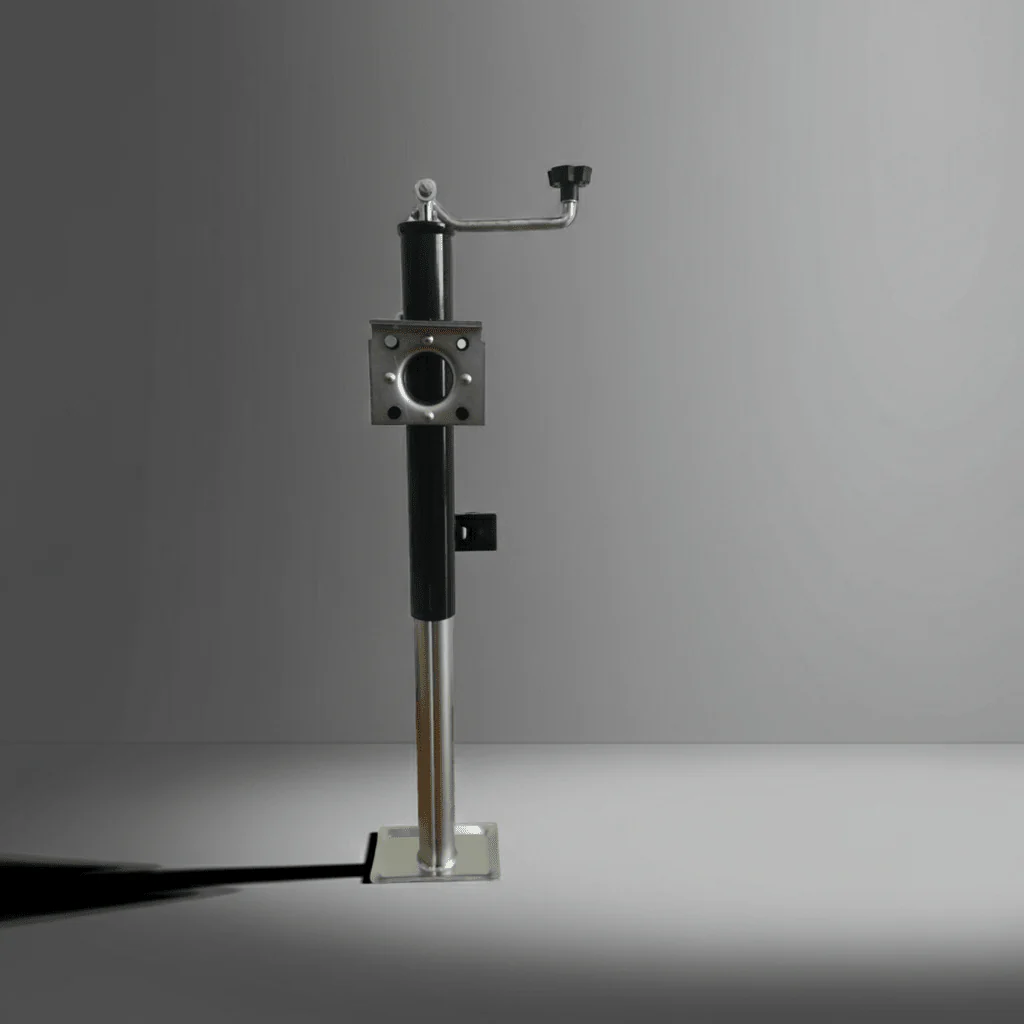

A-Frame Trailer Jack – Topwind with Removable Foot Plate, 2000 LB & 5000 LB Options

A-Frame Topwind Trailer Jacks - 2,000 LB & 5,000 LB Models

Secure and stabilize your trailer with this heavy-duty A-frame trailer jack, built for rugged use on utility trailers, RVs, and cargo haulers. Featuring a smooth topwind handle, durable steel construction, and a removable foot plate for versatile deployment, this jack delivers reliable lifting power and stable support when you need it most.

Key Features:

• Two Capacity Options - Choose between 907 kg (2,000 lb) or 2268 kg (5,000 lb) lifting power to perfectly match your trailer's load requirements.
• Topwind Crank Handle - Ergonomic design allows for smooth, effortless lifting and lowering under heavy loads.
• A-Frame Mount Compatibility - Designed for standard A-frame couplers with weld-on or bolt-on mounting options for easy installation.
• Removable Foot Plate - Provides added ground stability on soft surfaces and removes easily for extra ground clearance during travel.
• Extended Lifting Range - Offers 38.1 cm (15") of vertical travel, making it perfect for uneven terrain or tall hitch heights.

Specifications:

• Mount Type: A-Frame (Weld-on or Bolt-on)
• Travel Distance: 38.1 cm (15")
• Minimum Height (Mount Plate to Base): 22 cm (8.7")
• Maximum Height (Top to Bottom): 86.6 cm (34.1")
• Included: Topwind jack and removable foot plate

Available Models & Capacities:

SKU	Model Description	Load Capacity
TJ2000AF	A-Frame Topwind Trailer Jack	907 kg (2,000 lbs)
TJ5000AF	A-Frame Topwind Trailer Jack	2268 kg (5,000 lbs)

Perfect For:

• Utility and cargo trailers
• Boat and marine trailers
• RVs, campers, and landscape haulers
• Off-grid parking and heavy-duty towing
