Heavy-Duty Shackle Screw Pin Clevis | Galvanized Anchor for Rigging & Towing – Multiple Sizes

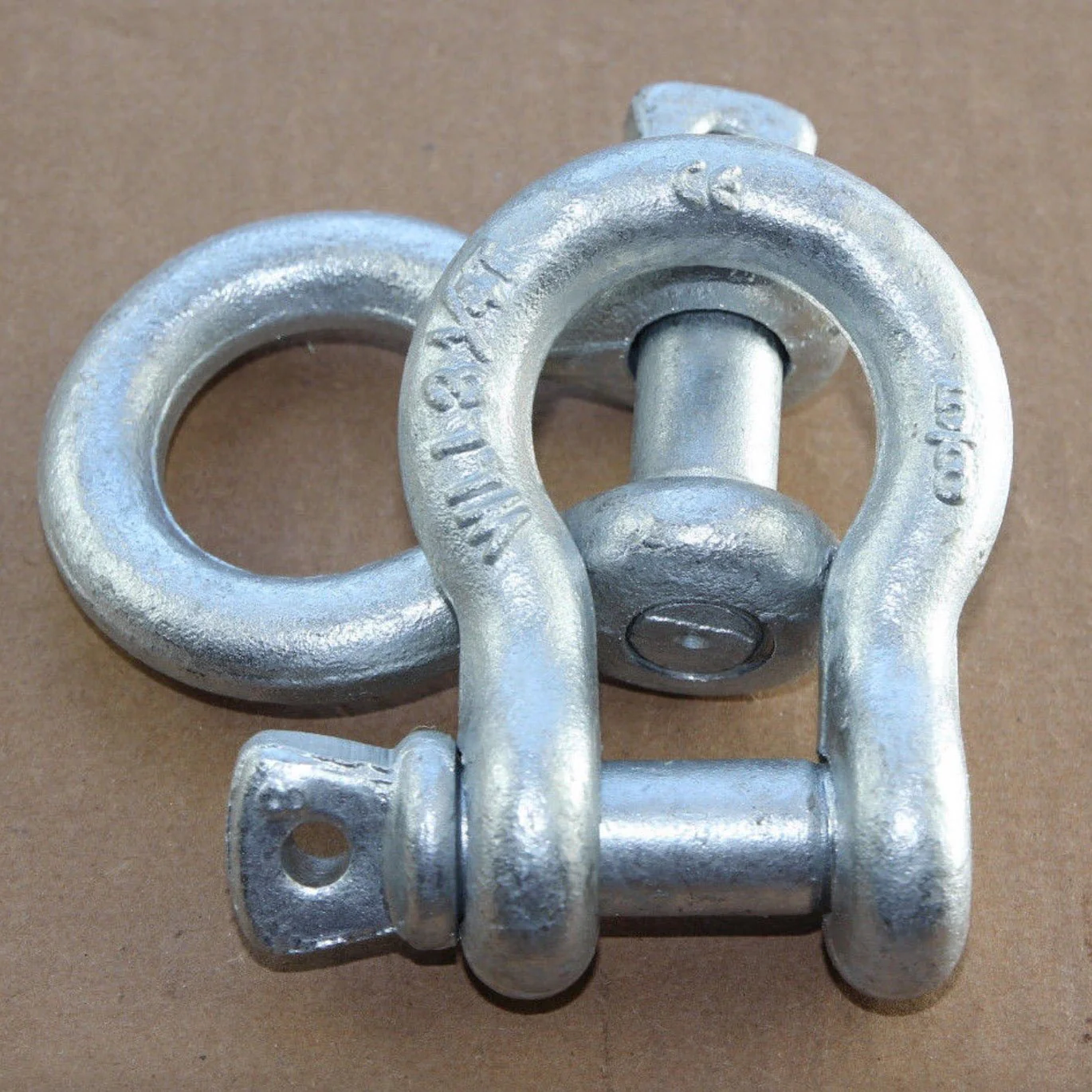

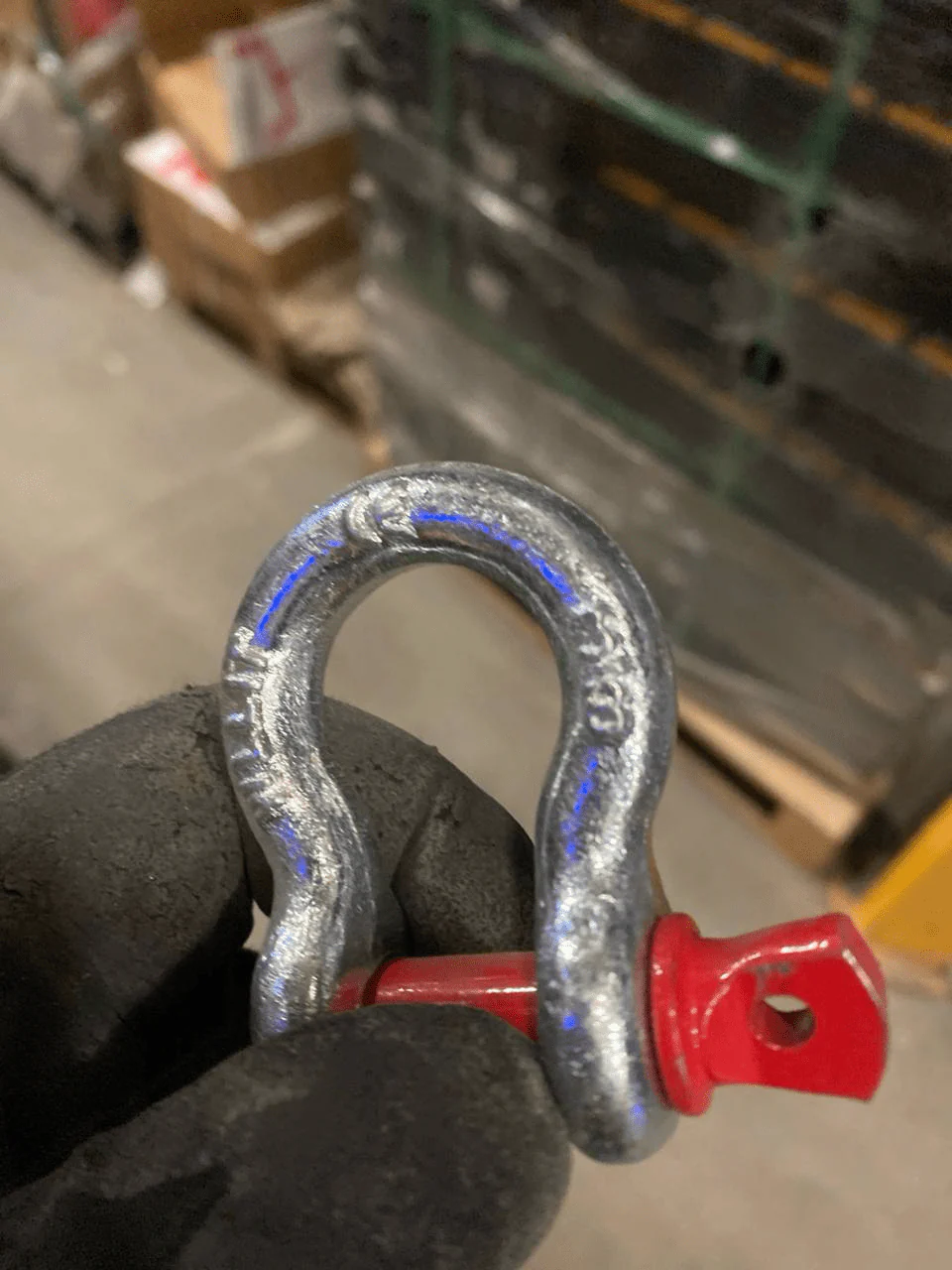

Robust Galvanized Screw Pin Anchor Shackles (12.7 mm to 38.1 mm)
Ditch the cheap, untested rigging hardware that warps under tension and puts your crew at severe risk on active job sites. Engineered for commercial crane operators, massive heavy equipment recovery, and industrial marine towing, these robust forged anchor shackles deliver uncompromising lifting strength. Constructed from hot-dip galvanized forged iron, they aggressively resist structural rust and corrosion in punishing saltwater and muddy job site environments. With massive safe working load capacities ranging from 1814.4 kg (4000.0 lbs) up to 15422.1 kg (34000.0 lbs), we stock these commercial-grade rigging components at wholesale prices to ensure you get real value for the dollar on your fleet recovery gear.
Key Features:
- Commercial-Grade Forged Iron: Engineered from solid forged metal to confidently sustain extreme tension without structural deformation during massive industrial crane lifts.
- Severe Weather Protection: Fully hot-dip galvanized to provide uncompromising corrosion and rust resistance in aggressive marine towing and muddy excavation environments.
- Secure Screw Pin Mechanism: Features a precision-machined threaded clevis pin that allows for rapid, secure attachment and easy removal even under harsh field conditions.
- Massive Operational Range: Carefully curated matrix of 6 specific sizes delivers verified safe working loads specifically rated for commercial freight and heavy machinery recovery.
Detailed Technical Specifications:
| Specification | Details |
| Equipment Type | Screw Pin Clevis Anchor Shackle |
| Material Construction | Forged Iron |
| Exterior Finish | Hot-Dip Galvanized Coating |
| Attachment Mechanism | Threaded Removable Clevis Pin |
| Operational Environment | Industrial Rigging & Marine Towing |
Available Models & SKUs:
| SKU | Pin Size (Diameter) | Safe Working Load (WLL) |
| SF1106 | 12.7 mm (1/2") | 1814.4 kg (4000.0 lbs) |
| SF1107 | 15.9 mm (5/8") | 4535.9 kg (10000.0 lbs) |
| SF1108 | 19.1 mm (3/4") | 4717.4 kg (10400.0 lbs) |
| SF1110 | 25.4 mm (1.0") | 8482.2 kg (18700.0 lbs) |
| SF1112 | 31.8 mm (1-1/4") | 10886.2 kg (24000.0 lbs) |
| SF1114 | 38.1 mm (1-1/2") |
15422.1 kg (34000.0 lbs) |
| SF1105 | 3/8" |
2,000 lb (907.2 kg) |
Perfect For:
- Securing massive structural steel payloads for commercial crane lifts
- Rigging heavy equipment recovery operations for submerged excavators and bulldozers
- Outfitting industrial transport fleets and flatbeds with reliable tie-down anchor points
- Marine towing operators needing robust, rust-resistant shackles at budget-friendly prices
